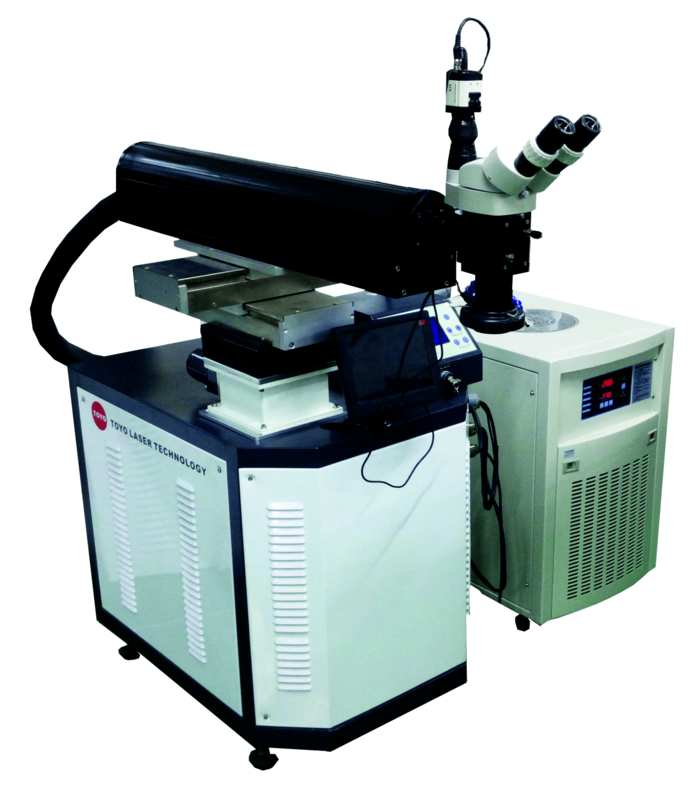

LASER WELDING MACHINE TOYO ECO-LINE
Features:
• It adopted imported ceramic condenser cavity from UK, high reflectivity, strong power, and
extremely long service life.
• This model occupied the largest proportion in domestic market for its proven technology and
stable performance.
• It equipped with 1.5P high power special cooling water system is able to support the machine to
work longer hours with high power in good condition.
• The base of the wortable uses electric lifting for up and down movement. The moving unit of the
worktable is equipped with precise ball bearing bar and linear lead rail. It is light weight and
flexible with precise positioning.
Enquiry about LASER WELDING MACHINE TOYO ECO-LINE
| Technical Specifications | |
|---|---|
| Laser Power | 200W |
| Laser Source | Pulsed Nd YAG 6mm |
| Pulse Width | 0.3-20ms |
| Pulse Frequency | 0.1-50Hz |
| Single Pulse Energy | 60J |
| Beam Diameter | 0.1-3.0mm |
| Cooling System | 1P water chiller |
| Power Consumption | 6KW |
| Observing System | microscope 10X |
| 3 axis of laser | X=200mmY=200mmZ=100mmall electrical |
| 3 axis of table | X=300mm Y=200mmZ=150mm XY manual, Z electrical |
| Data Memorization | 10 groups |
| Illumination | LED ring lights |
| Language Display | English |
| Shield Gas Supply | One line quick connection(argon) |
| Running Environment | Tem 5°C-30°C, Hum 5%-75% |
| Dimensions | 1150 x 700 x 1300 + 850 x 550 x 670 + 960 x 760 x 1150mm |
| Weight | 150kg(welder) + 70kg(table) + 75kg(chiller) |
| Laser head | 360 degree swing |
| Optional | 1) CCD and monitor 2) Magnetic Ball |
