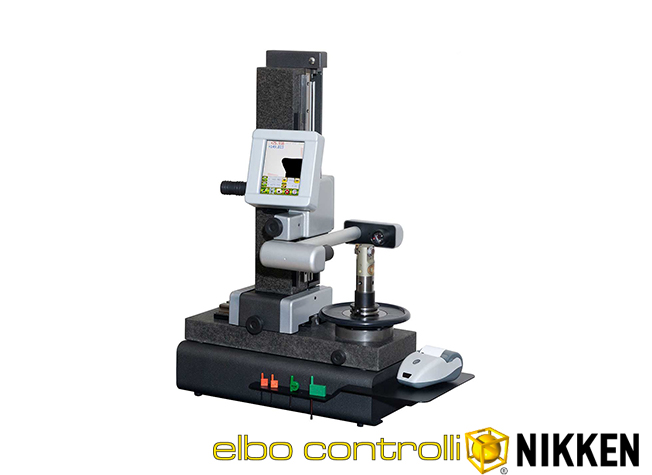

LARTH

Versions:

1. ISO/BT/HSK/polygonal taper/VDI INTERCHANGEABLE rotating spindle-holder
2. ISO 40 and 50 FIXED rotating spindle-holder

• Measuring range: X axis 130 mm (diameter 260 mm) Z axis 360 mm
• Measuring resolution: X axis 0.001 mm
• Measuring resolution: Z axis 0.001 mm
• Electronics driver based on RISC 32 bit processor and integrated vision system

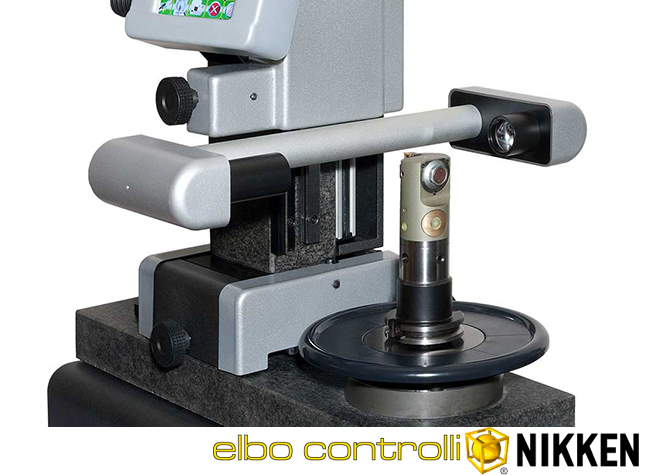

• C-MOS image sensor 0.001 mm resolution
• Telecentric lens and LED illuminator
• Framed image area: 5 x 5 mm about
• Magnifications: 20X about
• TFT colour LCD 5,7” LED backlight points matrix graphic display (90×120 mm image size)
• Full touch-screen for all presetter operations
• Intuitive icons and menu-based software
• Display radius/diameter, mm/inch, abs/incr.
• Measurement capability by full-screen auto-targeting

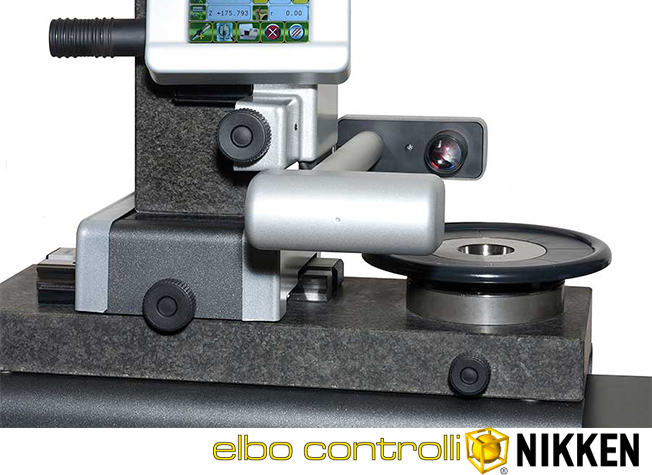

• X axis and Z axis focusing control bars
• Radius and angle automatic computing cycle
• 9 numerical machine origin management
• 9 numerical tool tables management
• Tool corrector specific storage of T, Lx, Lz, insert radius
• Data storage on Flash memory
• USB port for PC connection (Windows OS)
• BIOS update by USB port.
• External 24Vcc power supply
• Length: 512 mm, height: 827 mm, depth: 406 mm
• Weight: 45 kg
