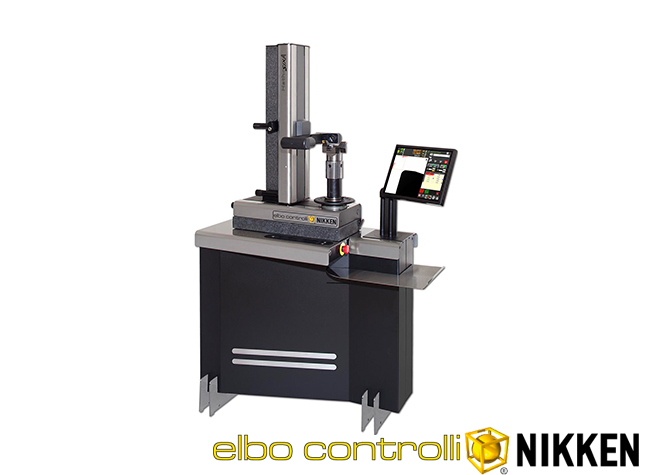

HATHOR SIX A
AUTOMATIC MEASUREMENT ACQUISITION
Measure tools automatically using the AUTOFOCUS function, no manual operator intervention needed. You can also set the measurement priority for the X or Z axis.
SOLID BASE AND COLUMN IN NATURAL GRANITE
By using natural granite for the base and column guarantees thermal and dimensional stability, making this machine precise and reliable.
RELIABLE MECHANICS

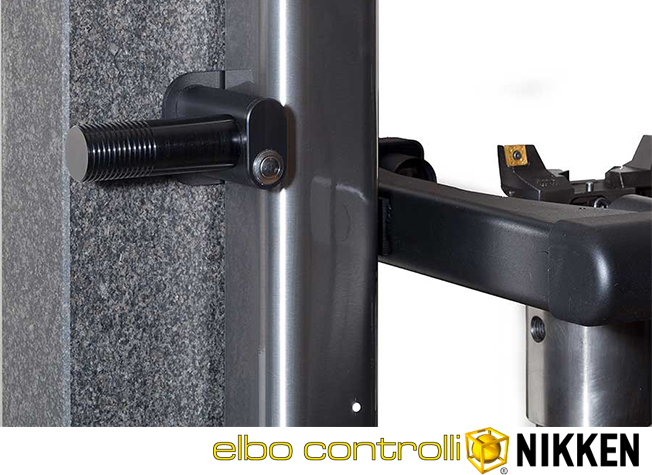

Hathor SIX A is equipped with a measuring range of 400 mm in diameter and 600 mm in height, the interchangeable rotating spindle is equipped with a pneumo-mechanical rotation brake and the movement of the axes is manual.
Enquiry about HATHOR SIX A
Technical Features
- Measuring range: diameter max 400 mm (radius 200 mm); height max 600 mm
- Machine structure in steel offering high mechanical and long life, floor mounted with self-levelling supports in non-deformable steel
- Base and column made of ground granite: linearity max error 2 μm/Mt certification with Taylor Hobson res.1 μm/Mt electronic millesimal level

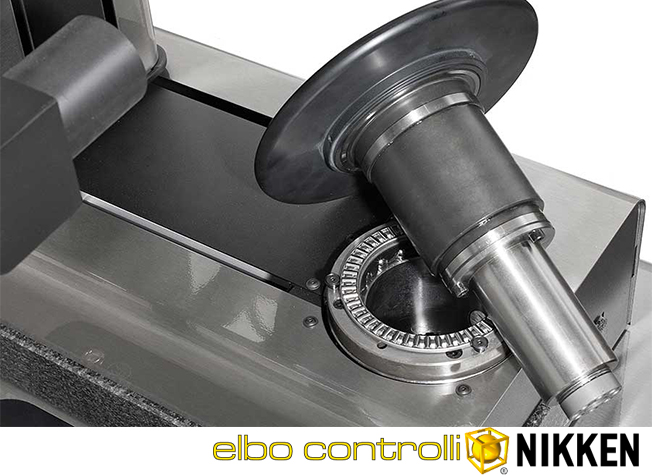

- ISO/BT/HSK/VDI …… etc. Interchangeable rotating spindle-holder (to be selected) max run-out error < 2 μm
- Spindle index in four angular positions: 0°-90°-180°-270°
- C Axis display: spindle holder angular position with 0.01° resolution
- Motor providing automatic rotation of the spindle with pneumatic engagement or the motion transmission for zero backlash (patented system)
- Spindle-holder Identification System (SP-ID) for additional spindle-holder, mounted on the interchangeable spindle
- Double vault arc prismatic slideways: n°2 X axis slideways, n°1 Z axis slideway
- Double re-circulating ball bearing slides (three in total), lubricated for life (preloading slides/slideways: P/H class)
- Universal electro-mechanical tool clamping (ISO/BT only)
- Pneumatic-mechanic braking of the spindle-holder rotation
- Constant load Archimedean spiral spring (as opposed to a mass counter-balance system)
- Vision-system for tool measuring and cutting inspection
- C-MOS sensor – Framed image area 6,4 x 6,4 mm
- Magnifications about 30X
- Bi-telecentric lens
- Red light episcopic leds illuminator with ring lens, red light diascopic led puntiform illuminator

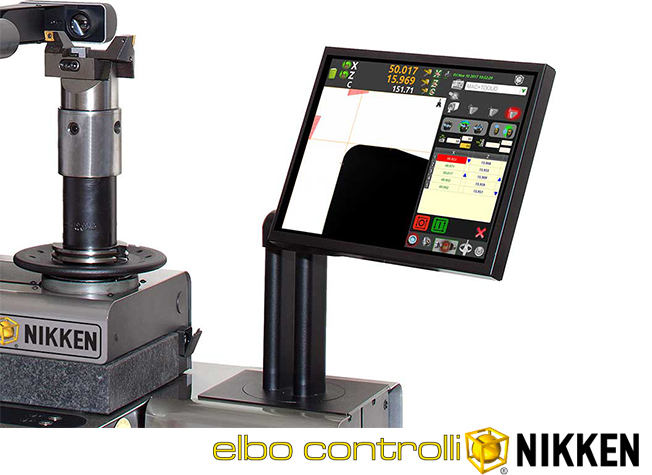

- TFT 15″ colour Touch Screen
- Intel I3 Quad Core Processor
- UBUNTU 14.04 LTS LINUX operating system
- Data storage on solid state disk SSD
- X and Z axes lock management for a translation speed lower than 2 mm/sec
- Three USB ports and one LAN networking port
- CNC machine origin and spindle adaptor management
- Tool list creation and/or single tool
- Automatic change of CNC machine origin allocation
- Td SIX (Tool Data SIX) to manage tools set and Post Processor universal generator, magnetic chip code-holders, printable tool set report and theoretical measurements and tolerances management
- Spindle holder auto rotation with automatic tool measurement cycles
- Peripheral speed of the spindle rotation is calculated and controlled based on the diameter of the current tool being measured
- Ready for TID infrastructure for tool identification with Datamatrix code
- ELBO CONTROLLI Linear Transducers in optical glass type SLIDE 371 certified HP laser. Axes resolution: X= 1 μm, Z= 1 μm
- Anti-dust cover provided for when not in use
- Overall dimensions: Length = 1240 mm, Height = 1840 mm, Depth = 558 mm
- Net weight: 190 Kg
