E64LTW 4 Camera
TECHNOLOGY AT THE HIGHEST LEVEL

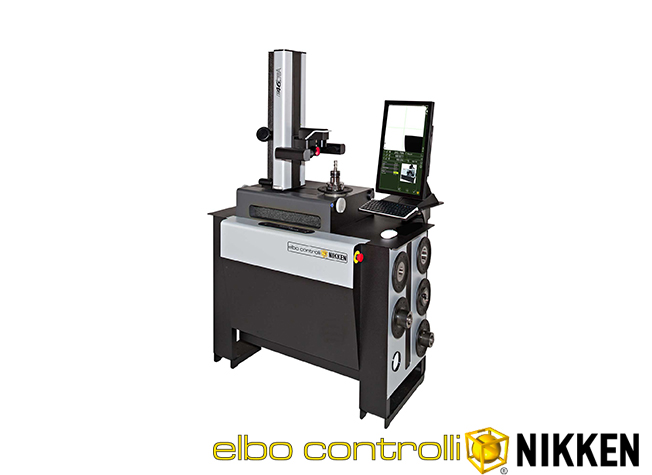

The E46LTW presetter machine is equipped with three cameras for the front and side vision of the tool. The system provides tool manufacturers and regrinders the ability to measure all the geometric characteristics of the tool. A fourth camera with 90x magnification is added specially for dental, watch-making, and medical industries.
SOLID BASE AND COLUMN IN NATURAL GRANITE
By using natural granite for the base and column guarantees thermal and dimensional stability, making this machine precise and reliable.
ADAPTS TO EVERY SITUATION
The tool holder rotating spindle is interchangeable for all types of machine attachment: HSK, ISO, polygonal taper, BT, VDI, etc. Therefore, no adapters needed, making sure we have an accurate and constant measurement.
Enquiry about E64LTW 4 Camera
Technical Features
- Measuring range: diameter max 320 mm (radius 160 mm); height max 600 mm
- Machine structure in steel offering high mechanical durability and long life, floor mounted with 3 fixed supports and 1 adjustable support in steel, equipped with keyboard and monitor adjustable support
- Base and column made of ground granite: linearity max error 2 μm/m certification with Taylor Hobson res.1 μm/Mt electronic millesimal level
- ISO/BT/HSK/VDI …… etc. Interchangeable rotating spindle-holder (to be specified) max run-out error < 2 μm
- Spindle index in four angular positions: 0°-90°-180°-270°
- Spindle-holder identification system (SP-ID) with NFC technology to automatically identify the spindle-holder after each replacement
- Double vault arc prismatic slideways: 2 for X axis slideways, 1 for Z axis slideway
- Double re-circulating ball bearing slides, lubricated for life (4) (preloading slides/slideways: P/H class)
- Universal mechanical tool clamping managed via software. (ISO/BT tools only)
- Pneumatic-mechanic braking of the spindle-holder rotation with radial compensation of the clamping force: no axis angular run error
- Constant load Archimedean spiral spring (as opposed to a mass counter-balance system)

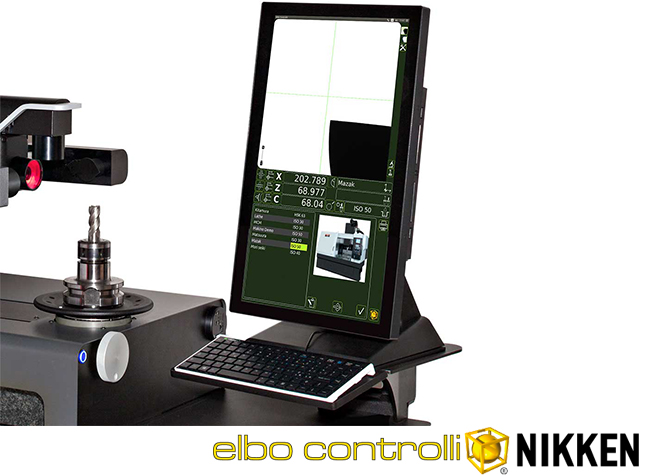

- Full HD LCD 22″ Touch Screen monitor
- Intel I3 Quad Core Processor
- UBUNTU 14.04 LTS LINUX operating system
- Data storage on solid state disk SSD
- X and Z axes block management with control maximum speed of translation 2mm/sec.
- 4 USB ports (keyboard, mouse, Dymo printer and one spare) and 1 LAN port
- CNC machine origin management and adapters
- Tool list creation and/or single tool
- Automatic change of CNC machine origin allocation
- Tools set and Post Processor universal generator
- Printable tool set report
- Theoretical measurements and tolerances management
- DXF format drawings import capability for overlaying on live tool profile
- Tool profile acquisition exportable in DXF format
- Ready for TID infrastructure for tool identification with Datamatrix code
- Ready for magnetic chip code-holders (Balluff for example, hardware not included)

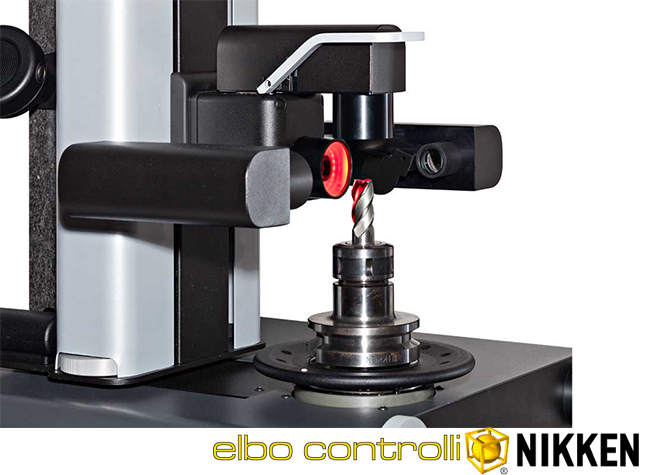

- Main Camera: tool measurement (diascopic) and cutting-edge inspection (episcopic): bi-telecentric lens, optical doublets at low F/Number in order to eliminate the error of the clearness circle, magnification 26X, digital zoom 2x and 4x available, C-MOS sensor 1,3 Mega pixels, USB 2.0 High speed connection, framed image area 10 x 10 mm (3 times bigger than standard values), episcopic illuminator with ring lens and red leds; diascopic illuminator with red, puntiform light red
- Second/Third Camera: cutting-edge inspection (episcopic) with on screen measurement: bi-telecentri lens, opportunity to view the tool from the top (front) or from the side (chest). Thanks to the rotating support by 90 degrees, the camera can be removed from above not to obstruct the measurement operations. Magnification 60X , digital zoom 2x and 4x available, C-MOS sensor 1,3 Mega pixels, USB 2.0 High speed connection, framed image area 4 x 4 mm (3,9μm/pixel), episcopic ring illuminator with diffused light and low angle: reducing glare caused by tool surface characteristic
- ELBO CONTROLLI NIKKEN Linear Transducers in optical glass type SLIDE 371 certified HP laser. Axes resolution: X= 1 μm, Z= 1 μm
- Anti-dust cover provided for when not in use.
- Overall dimensions: Length = 1282 mm, Height = 1874 mm, Depth = 672 mm
- Net weight: ~ 265 Kg
