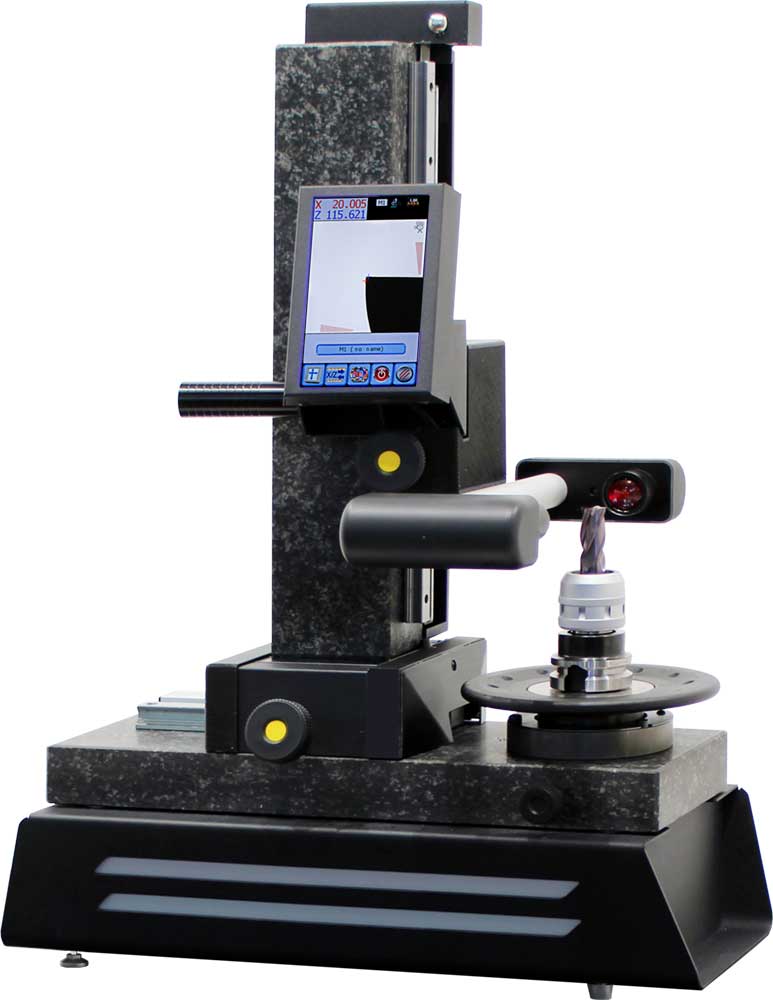

E236V+

• Measuring range: X axis 130 mm (diameter 260 mm) Z axis 360 mm
• Base and column made of ground granite
• ISO/BT/HSK/VDI… etc. interchangeable rotating spindle-holder
• 4 re-circulating ball bearing linear slides

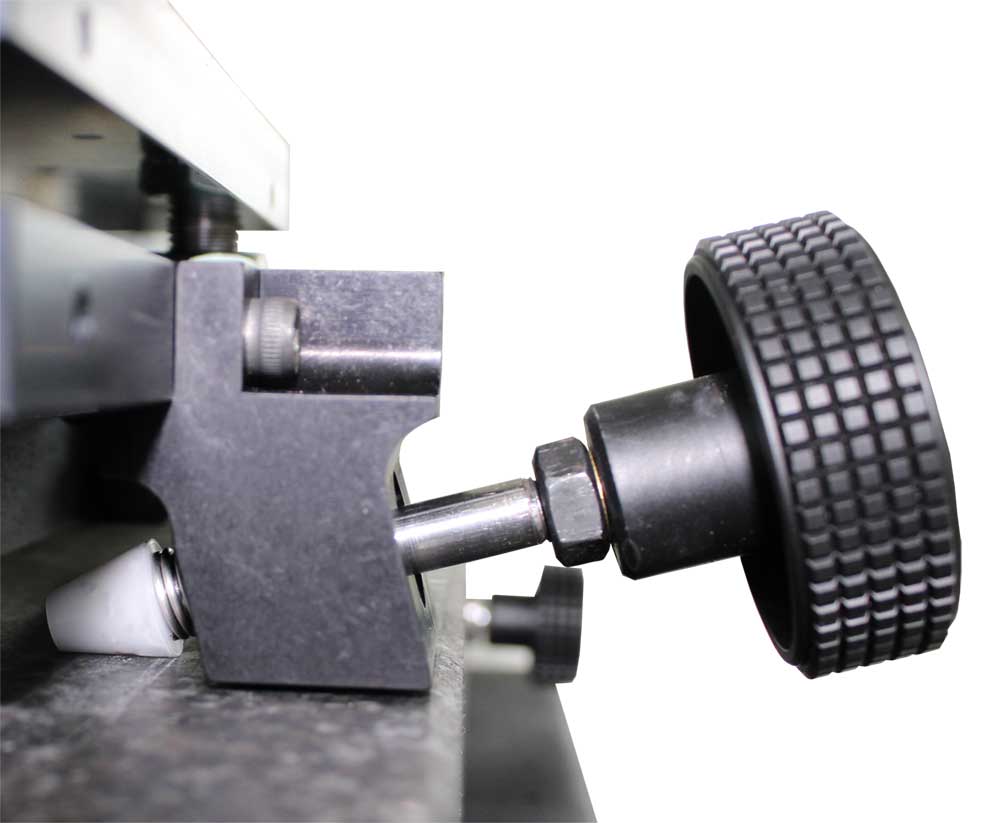

• Manual mechanical braking of the interchangeable spindle-holder rotation
• Manual axes movement
• External 24Vcc power supply

ELECTRONICS/OPTICS

• Vision system for tool measuring
• ELBO CONTROLLI NIKKEN linear transducers in optical glass type SLIDE 371
• Axes resolution: X = 1 μm, Z = 1 μm
• C-MOS sensor framed image area 5 x 5 mm
• 20X magnification
• Telecentric lens and LED illuminator

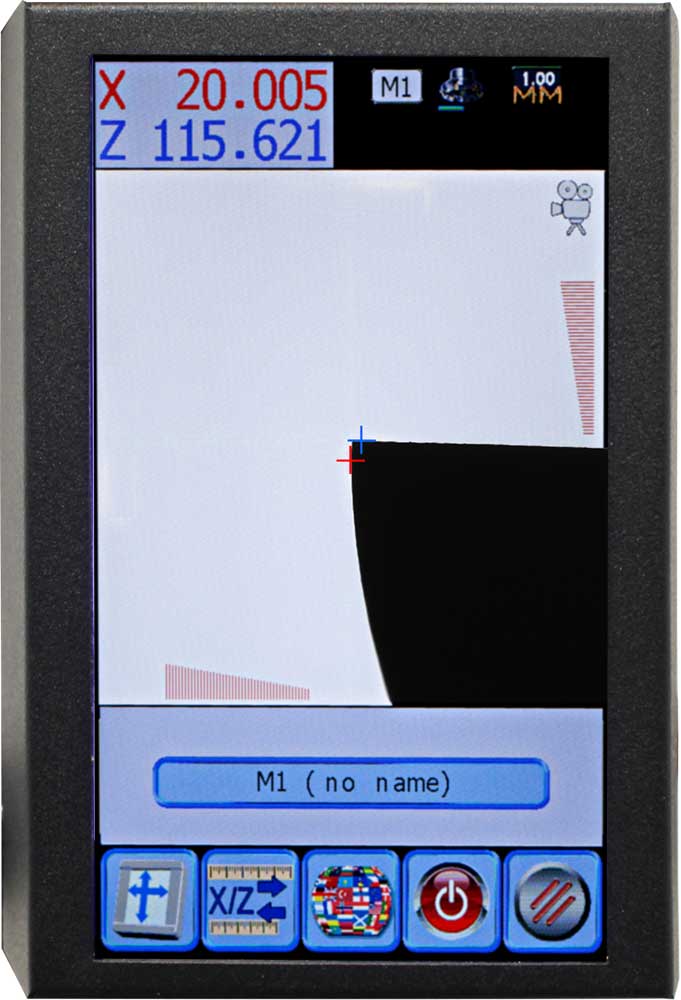

• TFT colour LCD 7” LED backlight points matrix graphic display (86 X 150 mm image size)
• Full touch-screen for all presetter operations
• ELBO CONTROLLI NIKKEN firmware
• Data storage on Flash memory
• Electronics driver based on RISC 32 bit processor and integrated vision system

SOFTWARE

• 9 numerical machine origin management
• 9 numerical tool tables management, each of them composed of 99 tools
• Tool corrector specific storage of T, Lx, Lz, insert radius
• Intuitive icons and menu-based software
• Display radius/diameter, mm/inch, abs/inc
• Measurement capability by full-screen auto-targeting
• X axis and Z axis focusing control bars
• Radius and angle automatic computing cycle
• Td236+ to manage backup and restore functions, machine origins and tool tables. Connection to the PC with an USB port and electronic Bios upgrade

DIMENSIONS

• Overall dimensions: L = 570 mm, H = 793 mm, D = 408 mm
• Net weight: ~ 46 kg
